Perform inverse transform of blocks of respective sizes according to VC-1 standard.
Syntax
IppStatus ippiTransform8x8Inv_VC1_16s_C1IR(Ipp16s* pSrcDst, Ipp32s srcDstStep, IppiSize sizeNZ);
IppStatus ippiTransform4x8Inv_VC1_16s_C1IR(Ipp16s* pSrcDst, Ipp32s srcDstStep, IppiSize sizeNZ);
IppStatus ippiTransform8x4Inv_VC1_16s_C1IR(Ipp16s* pSrcDst, Ipp32s srcDstStep, IppiSize sizeNZ);
IppStatus ippiTransform4x4Inv_VC1_16s_C1IR(Ipp16s* pSrcDst, Ipp32s srcDstStep, IppiSize sizeNZ);
IppStatus ippiTransform8x8Inv_VC1_16s_C1R(const Ipp16s* pSrc, Ipp16s* pDst, Ipp32s srcDstStep, IppiSize sizeNZ);
IppStatus ippiTransform4x8Inv_VC1_16s_C1R(const Ipp16s* pSrc, Ipp16s* pDst, Ipp32s srcDstStep, IppiSize sizeNZ);
IppStatus ippiTransform8x4Inv_VC1_16s_C1R(const Ipp16s* pSrc, Ipp16s* pDst, Ipp32s srcDstStep, IppiSize sizeNZ);
IppStatus ippiTransform4x4Inv_VC1_16s_C1R(const Ipp16s* pSrc, Ipp16s* pDst, Ipp32s srcDstStep, IppiSize sizeNZ);
Parameters
pSrcDst |
Pointer to the source and destination block. All samples of the source block should be in range [-2048; 2047). After transforming all samples of the destination block are in range [-512, 511). |
pSrc |
Pointer to the source block. All samples of the source block should be in range [-2048; 2047). |
pDst |
Pointer to the destination 8x8 block. After transforming all samples of the destination block are in range [-512, 511). |
srcDstStep |
Distance between starts of the consecutive lines in the source and destination blocks. |
sizeNZ |
Size of the top left-hand subblock with non-zero coefficients. This parameter is used by the function for improving performance with fast transforming algorithms if sizeNZ is less then block size. If sizeNZ is equal to the block size then “full” transforming algorithm is used. |
Description
The functions ippiTransform8x8Inv_VC1_16s, ippiTransform4x8Inv_VC1_16s, ippiTransform8x4Inv_VC1_16s, and ippiTransform4x4Inv_VC1_16s are declared in the ippvc.h file. These functions perform inverse transform in accordance with Annex A: Transform Specification of [SMPTE421M].
ippiTransform8x8Inv_VC1_16s_C1IR and ippiTransform8x8Inv_VC1_16s_C1R perform inverse transform of 8x8 inter block with 8x8 transformation type or 8x8 intra block.
ippiTransform8x8Inv_VC1_16s_C1IR Usage
{
Ipp16s* pSrcDstData = pointer_on_source_and_destination_block;
/*
All samples of source block should be in the range [-2048; 2047)
After transforming all samples of destination block will be in the range
[-512, 511)
*/
Ipp32s srcDstStep = source_and_destination_step; /* Step of the pointer
pSrcDstData (source and destination array) in bytes */
IppiSize dstSizeNZ = block_size_non_zero;
/*
The size of top left subblock with non-zero coefficients. This parameter is used
by this function for improving performance with the help of "fast" transforming
algorithms in the case of sizeNZ less than block size. If sizeNZ is equal to
block size, then "full" transforming algorithm is used.

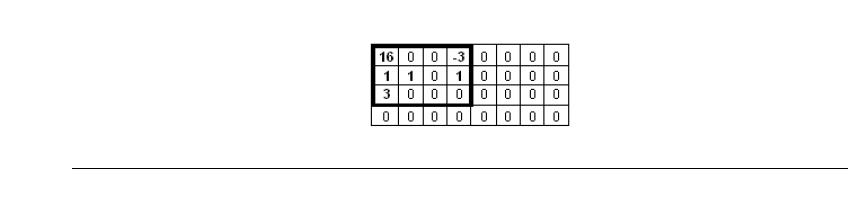

Example (8x4 block):
16 0 0 -3 0 0 0 0
1 1 0 1 0 0 0 0
3 0 0 1 0 0 0 0
0 0 0 0 0 0 0 0
In this case dstSizeNZ.width=4, dstSizeNZ.height=3
*/
IppStatus result;
/*
ippStsNoErr Indicates no error
ippStsNullPtrErr Indicates an error when pSrcDstData is NULL
*/
result = ippiTransform8x8Inv_VC1_16s_C1IR(pSrcDstData, srcDstStep, dstSizeNZ);
/*
Performs inverse transform of 8x8 inter block with 8x8 transformation type or
8x8 intra block in accordance with Annex A "Transform Specification" SMPTE 421M
*/
}
ippiTransform8x8Inv_VC1_16s_C1R Usage
{
Ipp16s* pSrcData = pointer_on_source_block;
/*
All samples of source block should be in the range [-2048; 2047)
*/
Ipp16s* pDstData = pointer_on_destination_block;
/*
After transforming all samples of destination block will be in the range
[-512, 511)
*/
Ipp32s srcStep = source_step; /* Step of the pointer pSrcData (source array) in bytes*/
Ipp32s dstStep = destination_step; /* Step of the pointer pDstData (destination array)
in bytes*/
IppiSize dstSizeNZ = block_size_non_zero;
/*
The size of top left subblock with non-zero coefficients. This parameter is used
by this function for improving performance with the help of "fast" transforming
algorithms in the case of sizeNZ less than block size. If sizeNZ is equal to
block size, then "full" transforming algorithm is used.
Example (8x4 block):
16 0 0 -3 0 0 0 0
1 1 0 1 0 0 0 0
3 0 0 1 0 0 0 0
0 0 0 0 0 0 0 0
In this case dstSizeNZ.width=4, dstSizeNZ.height=3
*/
IppStatus result;
/*
ippStsNoErr Indicates no error
ippStsNullPtrErr Indicates an error when pSrcData or pDstData is NULL
*/
result = ippiTransform8x8Inv_VC1_16s_C1R( pSrcData, srcStep, pDstData, dstStep,
dstSizeNZ );
/*
Performs inverse transform of 8x8 inter block with 8x8 transformation type or
8x8 intra block in accordance with Annex A "Transform Specification" SMPTE 421M
*/
}
ippiTransform4x8Inv_VC1_16s_C1IR and ippiTransform4x8Inv_VC1_16s_C1R perform inverse transform of 4x8 block into 8x8 inter block with 4x8 transformation type.
ippiTransform4x8Inv_VC1_16s_C1IR Usage
{
Ipp16s* pSrcDstData = pointer_on_source_and_destination_block;
/*
All samples of source block should be in the range [-2048; 2047)
After transforming all samples of destination block will be in the range
[-512, 511)
*/
Ipp32s srcDstStep = source_and_destination_step; /* Step of the pointer
pSrcDstData (source and destination array) in bytes*/
IppiSize dstSizeNZ[2] = block_size_non_zero;
/*
The size of top left subblock with non-zero coefficients. This parameter is used
by this function for improving performance with the help of "fast" transforming
algorithms in the case of sizeNZ less than block size. If sizeNZ is equal to
block size, then "full" transforming algorithm is used.
Example (8x4 block):
16 0 0 -3 0 0 0 0
1 1 0 1 0 0 0 0
3 0 0 1 0 0 0 0
0 0 0 0 0 0 0 0
In this case dstSizeNZ.width=4, dstSizeNZ.height=3
*/
IppStatus result;
/*
ippStsNoErr Indicates no error
ippStsNullPtrErr Indicates an error when pSrcDstData is NULL
*/
result = ippiTransform4x8Inv_VC1_16s_C1IR(pSrcDstData,srcDstStep,dstSizeNZ[0]);
result = ippiTransform4x8Inv_VC1_16s_C1IR(pSrcDstData+4,srcDstStep,
dstSizeNZ[1]);
/*
Performs inverse transform of 4x8 subblock in 8x8 inter block with 4x8
transformation type in accordance with Annex A "Transform Specification"
SMPTE 421M
*/
}
ippiTransform4x8Inv_VC1_16s_C1R Usage
{
Ipp16s* pSrcData = pointer_on_source_block;
/*
All samples of source block should be in the range [-2048; 2047)
*/
Ipp16s* pDstData = pointer_on_destination_block;
/*
After transforming all samples of destination block will be in the range [-512,
511)
*/
Ipp32s srcStep = source_step; /* Step of the pointer pSrcData (source array)
in bytes*/
Ipp32s dstStep = destination_step; /* Step of the pointer pDstData (destination
array) in bytes*/
IppiSize dstSizeNZ[2] = block_size_non_zero;
/*
The size of top left subblock with non-zero coefficients. This parameter is used
by this function for improving performance with the help of "fast" transforming
algorithms in the case of sizeNZ less than block size. If sizeNZ is equal to
block size, then "full" transforming algorithm is used.
Example (8x4 block):
16 0 0 -3 0 0 0 0
1 1 0 1 0 0 0 0
3 0 0 1 0 0 0 0
0 0 0 0 0 0 0 0
In this case dstSizeNZ.width=4, dstSizeNZ.height=3
*/
IppStatus result;
/*
ippStsNoErr Indicates no error
ippStsNullPtrErr Indicates an error when pSrcData or pDstData is NULL
*/
result = ippiTransform4x8Inv_VC1_16s_C1R( pSrcData, srcStep, pDstData, dstStep,
dstSizeNZ[0] );
result = ippiTransform4x8Inv_VC1_16s_C1R( pSrcData+4, srcStep, pDstData+4,
dstStep, dstSizeNZ[1] );
/*
Performs inverse transform of 4x8 subblock in 8x8 inter block with 4x8
transformation type in accordance with Annex A "Transform Specification" SMPTE
421M
*/
}
ippiTransform8x4Inv_VC1_16s_C1IR and ippiTransform8x4Inv_VC1_16s_C1R perform inverse transform of 8x4 subblock into 8x8 inter block with 8x4 transformation type.
ippiTransform8x4Inv_VC1_16s_C1IR Usage
{
Ipp16s* pSrcDstData = pointer_on_source_and_destination_block;
/*
All samples of source block should be in the range [-2048; 2047)
After transforming all samples of destination block will be in the range [-512,
511)
*/
Ipp32s srcDstStep = source_and_destination_step; /* Step of the pointer
pSrcDstData (source and destination array) in bytes */
IppiSize dstSizeNZ[2] = block_size_non_zero;
/*
The size of top left subblock with non-zero coefficients. This parameter is used
by this function for improving performance with the help of "fast" transforming
algorithms in the case of sizeNZ less than block size. If sizeNZ is equal to
block size, then "full" transforming algorithm is used.
Example (8x4 block):
16 0 0 -3 0 0 0 0
1 1 0 1 0 0 0 0
3 0 0 1 0 0 0 0
0 0 0 0 0 0 0 0
In this case dstSizeNZ.width=4, dstSizeNZ.height=3
*/
IppStatus result;
/*
ippStsNoErr Indicates no error
ippStsNullPtrErr Indicates an error when pSrcDstData is NULL
*/
result = ippiTransform8x4Inv_VC1_16s_C1IR( pSrcDstData, srcDstStep,
dstSizeNZ[0] );
result = ippiTransform8x4Inv_VC1_16s_C1IR( pSrcDstData+(srcDstStep*2),
srcDstStep, dstSizeNZ[1] );
/*
Performs inverse transform of 8x4 subblock in 8x8 inter block with 8x4
transformation type in accordance with Annex A "Transform Specification"
SMPTE 421M
*/
}
ippiTransform8x4Inv_VC1_16s_C1R Usage
{
Ipp16s* pSrcData = pointer_on_source_block;
/*
All samples of source block should be in the range [-2048; 2047)
*/
Ipp16s* pDstData = pointer_on_destination_block;
/*
After transforming all samples of destination block will be in the range
[-512, 511)
*/
Ipp32s srcStep = source_step; /* Step of the pointer pSrcData (source array) in
bytes*/
Ipp32s dstStep = destination_step; /* Step of the pointer pDstData (destination
array) in bytes*/
IppiSize dstSizeNZ[2] = block_size_non_zero;
/*
The size of top left subblock with non-zero coefficients. This parameter is used
by this function for improving performance with the help of "fast" transforming
algorithms in the case of sizeNZ less than block size. If sizeNZ is equal to
block size, then "full" transforming algorithm is used.
Example (8x4 block):
16 0 0 -3 0 0 0 0
1 1 0 1 0 0 0 0
3 0 0 1 0 0 0 0
0 0 0 0 0 0 0 0
In this case dstSizeNZ.width=4, dstSizeNZ.height=3
*/
IppStatus result;
/*
ippStsNoErr Indicates no error
ippStsNullPtrErr Indicates an error when pSrcData or pDstData is NULL
*/
result = ippiTransform8x4Inv_VC1_16s_C1R( pSrcData, srcStep, pDstData, dstStep,
dstSizeNZ[0] );
result = ippiTransform8x4Inv_VC1_16s_C1R( pSrcData+(srcStep*2), srcStep,
pDstData+(dstStep*2), dstStep, dstSizeNZ[1] );
/*
Performs inverse transform of 8x4 subblock in 8x8 inter block with 8x4
transformation type in accordance with Annex A "Transform Specification"
SMPTE 421M
*/
}
ippiTransform4x4Inv_VC1_16s_C1IR and ippiTransform4x4Inv_VC1_16s_C1R perform inverse transform of 4x4 block into 8x8 inter block with 4x4 transformation type.
ippiTransform4x4Inv_VC1_16s_C1IR Usage
{
Ipp16s* pSrcDstData = pointer_on_source_and_destination_block;
/*
All samples of source block should be in the range [-2048; 2047)
After transforming all samples of destination block will be in the range
[-512, 511)
*/
Ipp32s srcDstStep = source_and_destination_step; /* Step of the pointer
pSrcDstData (source and destination array) in bytes */
IppiSize dstSizeNZ[4] = block_size_non_zero;
/*
The size of top left subblock with non-zero coefficients. This parameter is used
by this function for improving performance with the help of "fast" transforming
algorithms in the case of sizeNZ less than block size. If sizeNZ is equal to
block size, then "full" transforming algorithm is used.
Example (8x4 block):
16 0 0 -3 0 0 0 0
1 1 0 1 0 0 0 0
3 0 0 1 0 0 0 0
0 0 0 0 0 0 0 0
In this case dstSizeNZ.width=4, dstSizeNZ.height=3
*/
IppStatus result;
/*
ippStsNoErr Indicates no error
ippStsNullPtrErr Indicates an error when pSrcDstData is NULL
*/
result = ippiTransform4x4Inv_VC1_16s_C1IR( pSrcDstData, srcDstStep,
dstSizeNZ[0] );
result = ippiTransform4x4Inv_VC1_16s_C1IR( pSrcDstData+4, srcDstStep,
dstSizeNZ[1] );
result = ippiTransform4x4Inv_VC1_16s_C1IR( pSrcDstData+(srcDstStep*2),
srcDstStep, dstSizeNZ[2] );
result = ippiTransform4x4Inv_VC1_16s_C1IR( pSrcDstData+(srcDstStep*2)+4,
srcDstStep, dstSizeNZ[3] );
/*
Performs inverse transform of 4x4 subblock in 8x8 inter block with 4x4
transformation type in accordance with Annex A "Transform Specification"
SMPTE 421M
*/
}
ippiTransform4x4Inv_VC1_16s_C1R Usage
{
Ipp16s* pSrcData = pointer_on_source_block;
/*
All samples of source block should be in the range [-2048; 2047)
*/
Ipp16s* pDstData = pointer_on_destination_block;
/*
After transforming all samples of destination block will be in the range
[-512, 511)
*/
Ipp32s srcStep = source_step; /* Step of the pointer pSrcData (source array)
in bytes*/
Ipp32s dstStep = destination_step; /* Step of the pointer pDstData (destination
array) in bytes*/
IppiSize dstSizeNZ[4] = block_size_non_zero;
/*
The size of top left subblock with non-zero coefficients. This parameter is used
by this function for improving performance with the help of "fast" transforming
algorithms in the case of sizeNZ less than block size. If sizeNZ is equal to
block size, then "full" transforming algorithm is used.
Example (8x4 block):
16 0 0 -3 0 0 0 0
1 1 0 1 0 0 0 0
3 0 0 1 0 0 0 0
0 0 0 0 0 0 0 0
In this case dstSizeNZ.width=4, dstSizeNZ.height=3
*/
IppStatus result;
/*
ippStsNoErr Indicates no error
ippStsNullPtrErr Indicates an error when pSrcData or pDstData is NULL
*/
result = ippiTransform4x4Inv_VC1_16s_C1R( pSrcData, srcStep, pDstData, dstStep,
dstSizeNZ[0] );
result = ippiTransform4x4Inv_VC1_16s_C1R( pSrcData+4, srcStep, pDstData+4,
dstStep, dstSizeNZ[1] );
result = ippiTransform4x4Inv_VC1_16s_C1R( pSrcData+(srcStep*2), srcStep,
pDstData+(dstStep*2), dstStep,dstSizeNZ[2] );
result = ippiTransform4x4Inv_VC1_16s_C1R( pSrcData+(srcStep*2)+4, srcStep,
pDstData+(dstStep*2)+4, dstStep,dstSizeNZ[3] );
/*
Performs inverse transform of 4x4 subblock in 8x8 inter block with 4x4
transformation type in accordance with Annex A "Transform Specification"
SMPTE 421M
*/
}
See below for an example of 8x4 block transform.
In this case pDstSizeNZ -> width should be equal to 4, pDstSizeNZ -> height should be equal to 3.
Return Values
ippStsNoErr |
Indicates no error. |
ippStsNullPtrErr |
Indicates an error condition when at least one of the specified pointers is NULL. |
