Syntax:
pair_style style N inner_distance_cutoff outer_distance_cutoff angle_cutof
Examples:
pair_style hbond/dreiding/lj 4 4.5 5.0 90 pair_coeff * * 3 i 100.0 3.1 pair_coeff * * 2*5 i 100.0 3.1 2 15.0 20.0 135.0
pair_style hbond/dreiding/morse 2 3.0 4.6 75.0 pair_coeff * * 3 j 100.0 1.0 2.0 pair_coeff * * 2*5 j 100.0 1.0 2.0 4.0 6.0
Description:

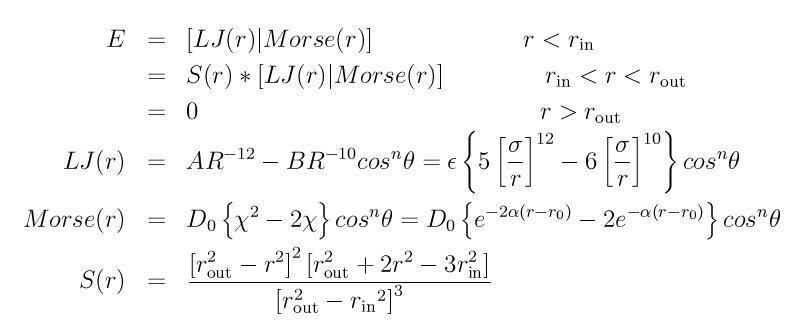

The hbond/dreiding styles compute the Acceptor-Hydrogen-Donor (AHD) 3-body hydrogen bond interaction for the DREIDING force field, given by:
where Rin is the inner spline distance cutoff, Rout is the outer distance cutoff, theta_c is the angle cutoff, and n is the cosine periodicity.

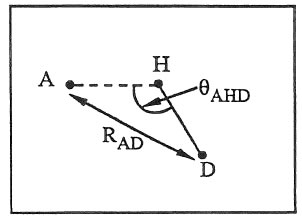

Here, r is the radial distance between the donor (D) and acceptor (A) atoms and theta is the bond angle between the acceptor, the hydrogen (H) and the donor atoms:
These 3-body interactions can be defined for pairs of acceptor and donor atoms, based on atom types. For each donor/acceptor atom pair, the 3rd atom in the interaction is a hydrogen permanently bonded to the donor atom, e.g. in a bond list read in from a data file via the read_data command. The atom types of possible hydrogen atoms for each donor/acceptor type pair are specified by the pair_coeff command (see below).
Style hbond/dreiding/lj is the original DREIDING potential of (Mayo). It uses a LJ 12/10 functional for the Donor-Acceptor interactions. To match the results in the original paper, use n = 4.
Style hbond/dreiding/morse is an improved version using a Morse potential for the Donor-Acceptor interactions. (Liu) showed that the Morse form gives improved results for Dendrimer simulations, when n = 2.
See this howto section of the manual for more information on the DREIDING forcefield.
Because the Dreiding hydrogen bond potential is only one portion of an overall force field which typically includes other pairwise interactions, it is common to use it as a sub-style in a pair_style hybrid or hybrid/overlay command.
The following coefficients must be defined for pairs of eligible donor/acceptor types via the pair_coeff command as in the examples above.
IMPORTANT NOTE: Unlike other pair styles and their associated pair_coeff commands, you do not need to specify pair_coeff settings for all possible I,J type pairs. Only I,J type pairs for atoms which act as joint donors/acceptors need to be specified; all other type pairs are assumed to be inactive.
IMPORTANT NOTE: A pair_coeff command can be speficied multiple times for the same donor/acceptor type pair. This enables multiple hydrogen types to be assigned to the same donor/acceptor type pair. For other pair_styles, if the pair_coeff command is re-used for the same I.J type pair, the settings for that type pair are overwritten. For the hydrogen bond potentials this is not the case; the settings are cummulative. This means the only way to turn off a previous setting, is to re-use the pair_style command and start over.
For the hbond/dreiding/lj style the list of coefficients is as follows:
For the hbond/dreiding/morse style the list of coefficients is as follows:
A single hydrogen atom type K can be specified, or a wild-card asterisk can be used in place of or in conjunction with the K arguments to select multiple types as hydrogens. This takes the form "*" or "*n" or "n*" or "m*n". See the pair_coeff command doc page for details.
If the donor flag is i, then the atom of type I in the pair_coeff command is treated as the donor, and J is the acceptor. If the donor flag is j, then the atom of type J in the pair_coeff command is treated as the donor and I is the donor. This option is required because the pair_coeff command requires that I <= J.
Epsilon and sigma are settings for the hydrogen bond potential based on a Lennard-Jones functional form. Note that sigma is defined as the zero-crossing distance for the potential, not as the energy minimum at 2^(1/6) sigma.
D0 and alpha and r0 are settings for the hydrogen bond potential based on a Morse functional form.
The last 3 coefficients for both styles are optional. If not specified, the global n, distance cutoff, and angle cutoff specified in the pair_style command are used. If you wish to only override the 2nd or 3rd optional parameter, you must also specify the preceding optional parameters.
Styles with a cuda, gpu, omp, or opt suffix are functionally the same as the corresponding style without the suffix. They have been optimized to run faster, depending on your available hardware, as discussed in Section_accelerate of the manual. The accelerated styles take the same arguments and should produce the same results, except for round-off and precision issues.
These accelerated styles are part of the USER-CUDA, GPU, USER-OMP and OPT packages, respectively. They are only enabled if LAMMPS was built with those packages. See the Making LAMMPS section for more info.
You can specify the accelerated styles explicitly in your input script by including their suffix, or you can use the -suffix command-line switch when you invoke LAMMPS, or you can use the suffix command in your input script.
See Section_accelerate of the manual for more instructions on how to use the accelerated styles effectively.
Mixing, shift, table, tail correction, restart, rRESPA info:
These pair styles do not support mixing. You must explicitly identify each donor/acceptor type pair.
These styles do not support the pair_modify shift option for the energy of the interactions.
The pair_modify table option is not relevant for these pair styles.
These pair styles do not support the pair_modify tail option for adding long-range tail corrections to energy and pressure.
These pair styles do not write their information to binary restart files, so pair_style and pair_coeff commands need to be re-specified in an input script that reads a restart file.
These pair styles can only be used via the pair keyword of the run_style respa command. They do not support the inner, middle, outer keywords.
These pair styles tally a count of how many hydrogen bonding interactions they calculate each timestep and the hbond energy. These quantities can be accessed via the compute pair command as a vector of values of length 2.
To print these quantities to the log file (with a descriptive column heading) the following commands could be included in an input script:
compute hb all pair hbond/dreiding/lj variable n_hbond equal c_hb[1] #number hbonds variable E_hbond equal c_hb[2] #hbond energy thermo_style custom step temp epair v_E_hbond
Restrictions: none
Related commands:
Default: none
(Mayo) Mayo, Olfason, Goddard III, J Phys Chem, 94, 8897-8909 (1990).
(Liu) Liu, Bryantsev, Diallo, Goddard III, J. Am. Chem. Soc 131 (8) 2798 (2009)
